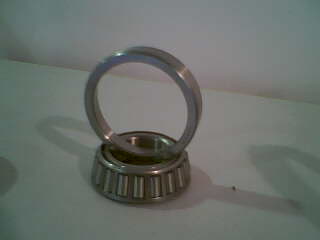

33200 Series


Product Description

Bearing No. Boundary dimensions Basic load rating(kN) Limiting speed Mass
mm Dynamic Static rpm Kg
d D T B C Rmin rmin Cr Cor Grease Oil ≈
33205 25 52 22 22 18 1 1 47.3 56 6700 9000 0.23
33206 30 62 25 25 19.5 1 1 64.4 76.5 5600 7500 0.37
33207 35 72 28 28 22 1.5 1.5 84.2 106 4800 6300 0.522
33208 40 80 32 32 25 1.5 1.5 105 132 4300 5600 0.535
33209 45 85 32 32 24.5 1.5 1.5 108 143 4000 5300 0.82
33210 50 90 32 32 24.5 1.5 1.5 114 160 3800 5000 0.9
33211 55 100 35 35 27 2 1.5 138 190 3400 4500 1.2
33212 60 110 38 38 29 2 1.5 168 250 3000 4000 1.6
33213 65 120 41 41 32 2 1.5 194 270 2800 3800 2.05
33214 70 125 41 41 32 2 1.5 201 285 2600 3600 2.1
33215 75 130 41 41 31 2 1.5 209 300 2400 3400 2.25
33216 80 140 46 46 35 2.5 2 251 375 2200 3200 2.9
33217 85 150 49 49 37 2.5 2 286 430 2000 3000 3.7
33220 100 180 63 63 48 3 2.5 429 655 1700 2400 6.78
